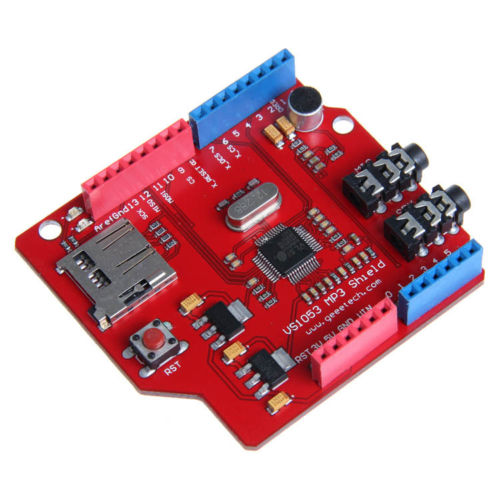

VS1053B MP3 shield board with TF card,SPI interface for Arduino MP3 AAC WMA MIDI

VS1053B MP3 shield board with TF card,SPI interface for Arduino MP3 AAC WMA MIDI
VS1053 Features

1. Can play a variety of music formats, support for OGG encoding real-time recording

2. SPI interface, the control signal lines are led out

3. A headphone and stereo output

4. A microphone for recording

5. A line_in input interface

6. Power indicator

7. 3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current

8. A single power supply: +5 VDC

9. 12.288 Mhz crystal

10. TF card slot
Code ARD-1106
Weight 1.00 lbs

Our price: $29.99
