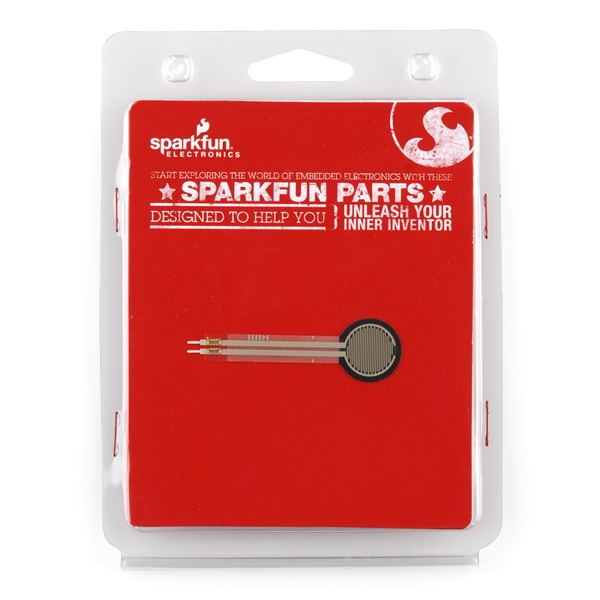

Force Sensitive Resistor 0.5"

Force Sensitive Resistor 0.5"
Two pins extend from the bottom of the sensor with 0.1" pitch making it bread board friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR.

These sensors are simple to set up and great for sensing pressure, but they aren't incredibly accurate. Use them to sense if it's being squeezed, but you may not want to use it as a scale.

Dimensions:
• Overall length: 2.375"
• Overall width: 0.75"
• Sensing diameter: 0.5"

Documents:
•FSR Integration Guide
•Quickstart Guide
Code SE-RTL-09888
Weight 1.00 lbs

Our price: $9.99
