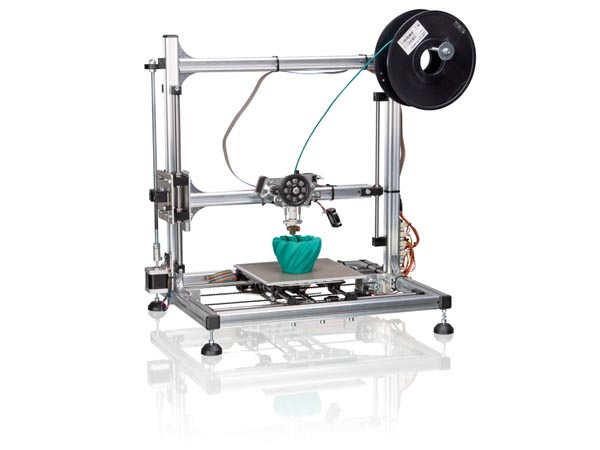

Velleman K8200 3D Printer

Velleman K8200 3D Printer
Specifications
•Linear ball bearings: 8 and 10 mm (0.314" and 0.393")
•Technology: FFF (Fused Filament Fabrication) for PLA and ABS
•Power supply: 15 V / 6,6A max.
•FTDI USB 2.0 to Serial
•Dimensions of printable area: 20 x 20 x 20cm / 7.87 x 7.87 x 7.87"
•Typical printing speed: 120 mm/s
•Maximum print speed: 150 to 300 mm/s (depending on the object to be printed)
•Extrusion nozzle: 0.5 mm
•Extrusion thermistor: NTC 100K
•Extruded aluminum profiles: 27.5 mm / 1.08" wide
•Movement: 4 NEMA 17 stepper motors
•Resolution: ◦Nominal mechanical resolution: ◾X and Y: 0.015 mm / 590.55 µin (smallest step the printing plate can move in the X and Y direction)
◾Z: 0.781 µm / 30.74 µin(smallest step the printing plate can move in the Z direction)

◦Nominal printing resolution: ◾Wall thickness (X,Y): 0.5 mm / 0.019"
◾Layer thickness (Z): 0.20 - 0.25 mm / 0.0078 - 0.0098"


•Dimensions: ◦Width: 50cm / 19.7"
◦Depth: 42cm / 16.5"
◦Height: 62cm / 24.4"
◦Weight: 9Kg / 19.84lbs

•software: Repetier version 0.84 and up www.repetier.com
•included: 5m PLA black sample
Code VM-K8200
Weight 20.00 lbs

Our price: $699.00
