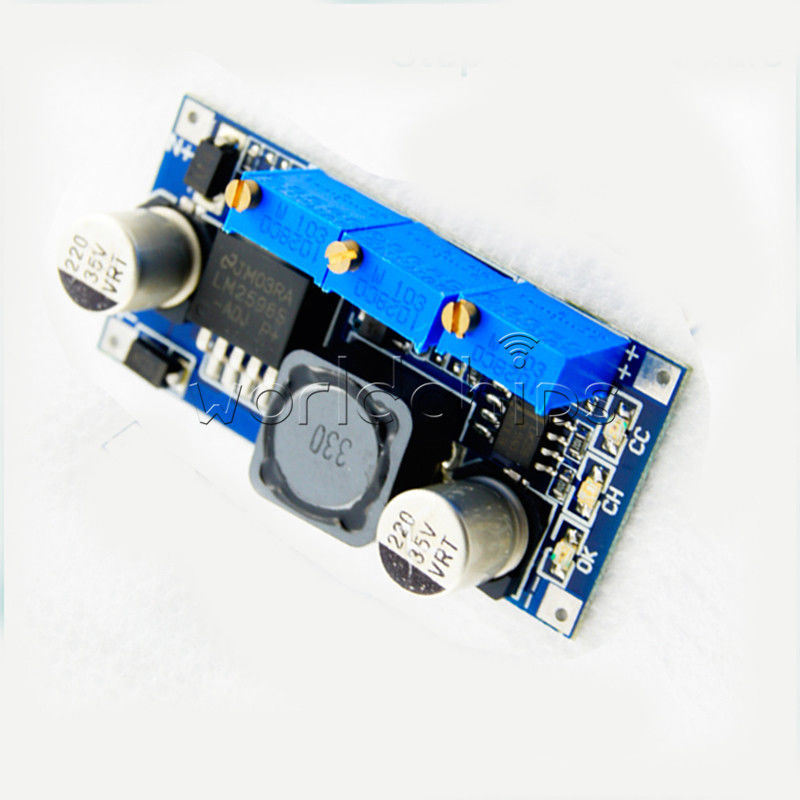

LM2596 Adjustable Step Down Module

LM2596 Adjustable Step Down Module
DC-DC LM2596 Step Down Adjustable Converter Power Supply Module

1. Module property:Non-isolation buck
2. Rectification mode:Non-synchronous rectifier
3. Input voltage:4V-40V
4. Output voltage:1.3V-35V
5. Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
6. Conversion efficiency:92%( highest )
7. Switching frequency:65KHz
8. Output ripple:30mV( maximum )
9. Load regulation:±0.5%
10.Voltage regulation:± 2.5%
11.Work temperature:-40 to +85

NOTE:This can't be used to step up Voltage
Code ARD-1007

Our price: $9.99
Quantity
: *
: *
: *
