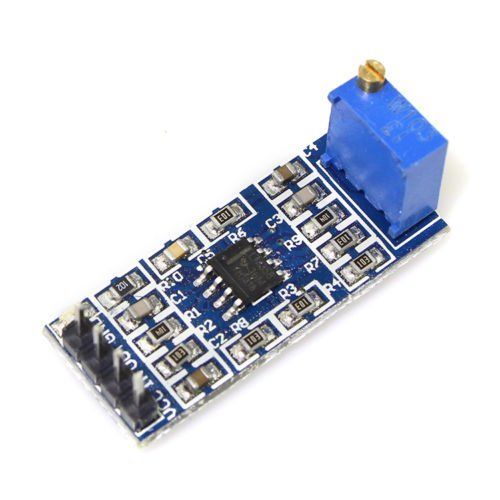

LM358 100 Gain Signal amplification module Operational Amplifier DC5-12V

LM358 100 Gain Signal amplification module Operational Amplifier DC5-12V
Description


onboard LM358 chip
100 gain of circuit design
onboard 10K adjustable resistance , you can adjust the magnification
on-board power indicator
the chip has been drawn primarily pin can be directly input and output signals
Operating Voltage : 5 ~ 12V
board size : 32.7 (mm) x13.3 (mm)
Code ARD-1057
Weight 0.50 lbs

Our price: $9.99
