RFID Reader IC Card Proximity Module

RFID Reader IC Card Proximity Module
Working current: 13-26 ma/dc 3.3 V

The idle current: 10-13 ma/dc 3.3 V

Sleep current: < 80 ua

Peak current: < 30 ma

Operating frequency: 13.56 MHz

Support for card type: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire

Product physical properties: size: 40 mm x 60 mm

Working environment temperature: 20-80 - c

Storage environment temperature: 40-85 - c

Environmental relative humidity: 5% - 5% relative humidity

SPI module interface parameters

Data transfer rate: the largest 10 mbit/s

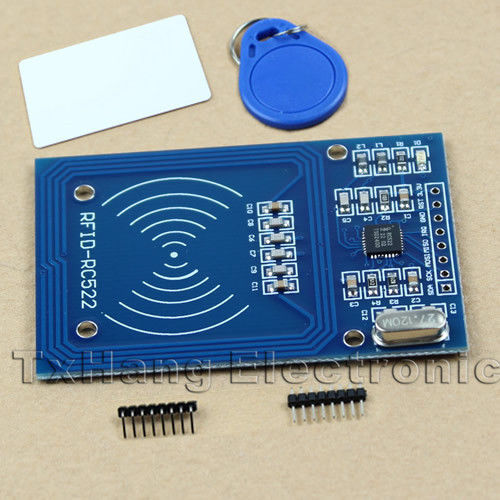

Package Include:

RFID-RC522 module x1

The Standard S50 Blank Card x1

S50 Special-shaped Card(as shown by the key ring shape) x1

Straight Row of Pin x1

Curved Row of Pin x1
Code ARD-1053
Weight 1.00 lbs

Our price: $9.99
