433Mhz RF Transmitter and Receiver

433Mhz RF Transmitter and Receiver

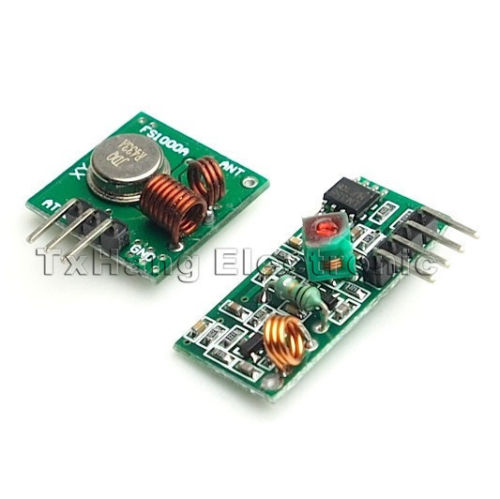

433Mhz RF Transmitter/Receiver

Receiver Module

1. Operating voltage: DC5V
2. Quiescent current: 4mA
3. Receiving frequency: 433MHZ
4. Receiver sensitivity:-105DB

Transmitter Module

1. Launch distance :20-200 meters
2. Operating voltage :3.5-12V
3. Dimensions: 19 * 19mm
4. Operating mode: AM
5. Transfer rate: 4KB/s
6. Transmitting power: 10mW
7. Transmitting frequency: 433M
8. Pinout from left to right: (DATA; VCC; GND)
Code ARD-1008
Weight 1.00 lbs

Our price: $8.99
