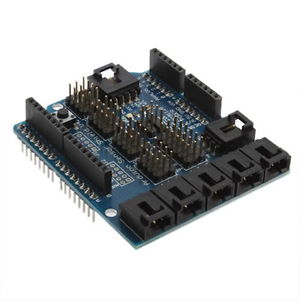

Sensor Shield V4 Digital Analog Module

Sensor Shield V4 Digital Analog Module
Sensor Shield V4 Digital Analog Module & Servo Motor

1.Operating Voltage: 5VDC.
2.Input Voltage (recommended): 7-12VDC.
3.Input Voltage (limits): 6-20VDC.
4.Buckled Analog Port : Handy, solid connection to 6 Analog inputs with VCC/GND.
5.Digital IO port : 13 ports prepared to digital modules or servos.
6.Analog IO Port: 2.54 grid male pin header connections.
7.Buckled Communication Port : Selectable between I2C and UARt.
Code ARD-1002
Weight 1.00 lbs

Our price: $18.99
