MULTIMETER

MULTIMETER

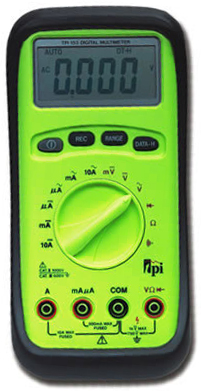

Model 153 Specifications

DC Volts Maximum Input: 1000V
Maximum Resolution: 0.1mV

Accuracy: +/-0.3%

AC Volts Maximum Input: 750V
Maximum Resolution: 0.001mV

Accuracy: +/-0.8%

DC Amps Maximum Input: 10A
Maximum Resolution: 0.1μA

Accuracy: +/-5%

AC Amps Maximum Input: 10A
Maximum Resolution: 0.1μA

Accuracy: +/-0.8%

Resistance (Ohms) Maximum Input: 40MΩ
Maximum Resolution: 0.1mΩ

Accuracy: +/-0.5%

Frequency N/A
Capacitance N/A
Inductance N/A
Temperature
(K-Type Thermocouple)
N/A
Continuity Audible at less than 50Ω
Diode 3V at 30µA maximum output
Duty Cycle N/A
True RMS Responding No
Conductance No
Pulse Width No
Data Hold Yes
Min/Max Record Yes
Time Stamp Logging No
Relative Mode No
Compare Mode No
RS-232 Output No
Process Loop Output No
Sleep Mode / Auto Off Yes
Protective Boot Yes (standard)
Display Type 4000 count LCD
Range Selection Auto / Manual
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature 14°F to 122°F (-10°C to 50°C)
Humidity 80% non-condensing
Size 7.4” x 3.4” x 1.2” (187mm x 86mm x 33mm) with boot
Weight 12oz (340g) with boot
Battery Type 1.5V “AA” Alkaline (2)
Battery Life 200hrs Typical
OverInput Category CAT III 600V
Agency Approval cULus 61010-1, IEC 61010-1
Warranty Limited Lifetime
Code TP-153
Weight 3.00 lbs

Our price: $79.99
