ProtoScrewShield Kit

ProtoScrewShield Kit

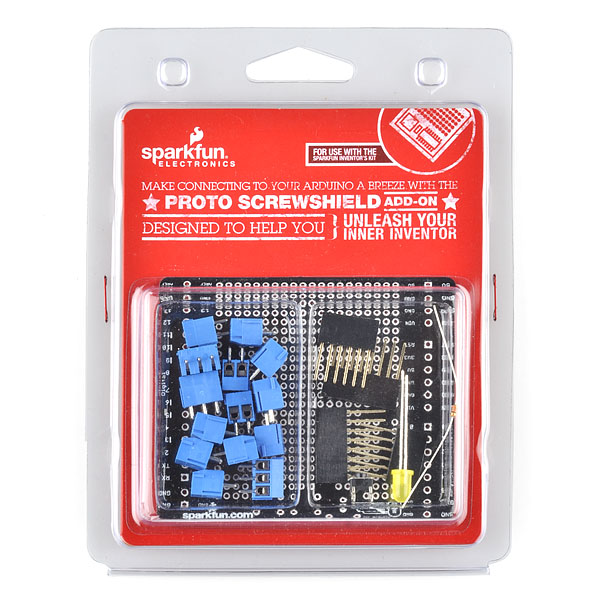

This product includes all the parts shown and comes in kit form and must be soldered together by the end user.

Note: This product is a collaboration with Tod Kurt, John Edgar Park, and Brian Jepson of WingShield Industries and a portion of each sale goes to them for product support and continued development.

Kit Includes:
• 1x ScrewShield PCB
• 1x 5mm Yellow LED
• 1x 330Ω Resistor
• 2x 6-pin Stackable Headers
• 2x 8-pin Stackable Headers
• 2x Momentary Push Buttons
• 6x 2-pin 3.5mm Screw Terminals
• 8x 3-pin 3.5mm Screw Terminals

Documents:
•Schematic
•Maker Faire Project
•Connection Diagram
•Quickstart Guide
Code SE-RTL-10431
Weight 1.00 lbs

Our price: $16.99
