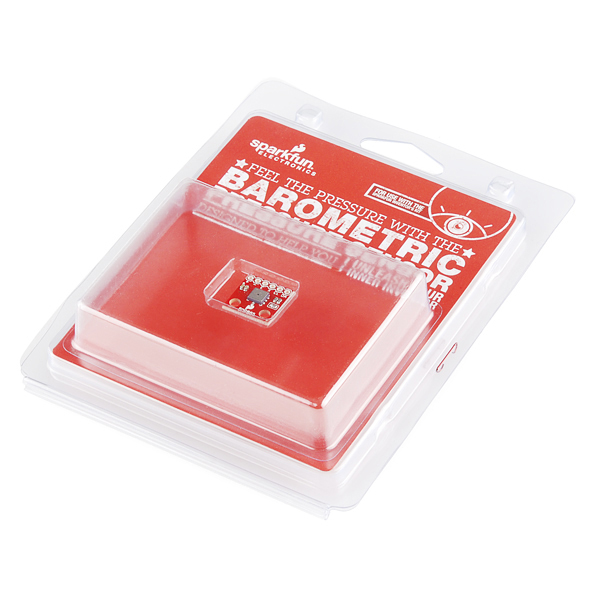

Barometric Pressure Sensor

Barometric Pressure Sensor
This breadboard-friendly board breaks out every pin to a 6-pin 0.1" pitch header. VCC can be from 1.8V to 3.6V; we typically run it on a clean, regulated 3.3V supply. The analog and digital supplies (VDDD and VDDA) are tied to a single header pin, but are separately decoupled. It connects to a microcontroller via I²C bus (also known as TWI, or on the Arduino, the "Wire" library).

We've made some minor hardware changes this time around to address some suggestions from the comment section including the addition of a solder jumper to disable the I2C pull-ups.

Features:
• Digital two wire (I²C, TWI, "Wire") interface
• Wide barometric pressure range
• Flexible supply voltage range (1.8V to 3.6V)
• Ultra-low power consumption
• Low noise measurements
• Factory-calibrated
• Includes temperature sensor
• Low-profile with a small footprint

Dimensions:
• 0.6" x 0.6" (15.24 x 15.24 mm)

Documents:
•Schematic
•Eagle Files
•Datasheet (BMP085)
•Quickstart Guide
•Example Arduino Sketch
•Example Code (ATmega328)
•Product Flyer
•Wiring Example
•mbed User Review
•Bildr Tutorial
•Pressure units converter
Code SE-RTL-09889
Weight 1.00 lbs

Our price: $21.99
