Joystick Shield Kit

Joystick Shield Kit
The momentary push buttons are connected to Arduino digital pins 2-6; when pressed they will pull the pin low (utilizing the internal pull-ups of the Arduino). Vertical movement of the joystick will produce a proportional analog voltage on analog pin 0, likewise, horizontal movement of the joystick can be tracked on analog pin 1.

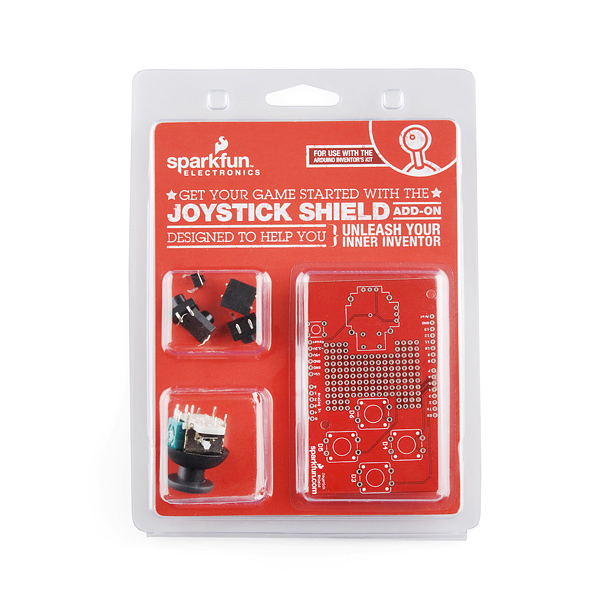

This product is the entire kit and contains the following items:
• 1 x Joystick Shield PCB
• 4 x Momentary Push Button Switch - 12mm Square
• 1 x Thumb Joystick
• 1 x Mini Push Button Switch (breaks out Arduino's reset switch)
• 2 x 6-pin Arduino Stackable Header
• 2 x 8-pin Arduino Stackable Header

Documents:
•Schematic
•Eagle Files
•Joystick Assembly Tutorial
•Joystick Quickstart Guide
•Arduino Sample Sketch
Code SE-RTL-09895
Weight 1.00 lbs

Our price: $18.99
Quantity
: *
: *
: *
