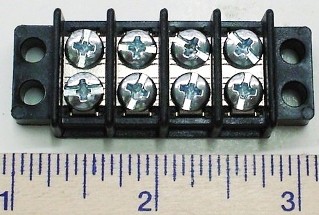

30 Amp Dual Row Terminal Blocks 4 position .375 spacing

30 Amp Dual Row Terminal Blocks 4 position .375 spacing
Specifications: Rating: 30A, 300V Center Spacing: .375"¯ or 3/8"¯ (9.52 mm) Wire Range: #14-22 AWG CU Screw Size: #6-32 philslot screws Torque Rating: 9 in-lb Distance Between Barriers: .30"¯ (7.62 mm) Mounting: #6 screws Operating Temperature: 130oC (266oF) Max. -40oC (-40oF) Min. Materials: Molded base: Black, UL rated 94VO thermoplastic Terminal plating: Tin over brass; Screws: Zinc plated steel Breakdown Voltage: 3600V Agency Information: UL/CSA; IEC Compliance; CE Certified
Code PH-13-1404
Weight 1.00 lbs

Our price: $6.99
